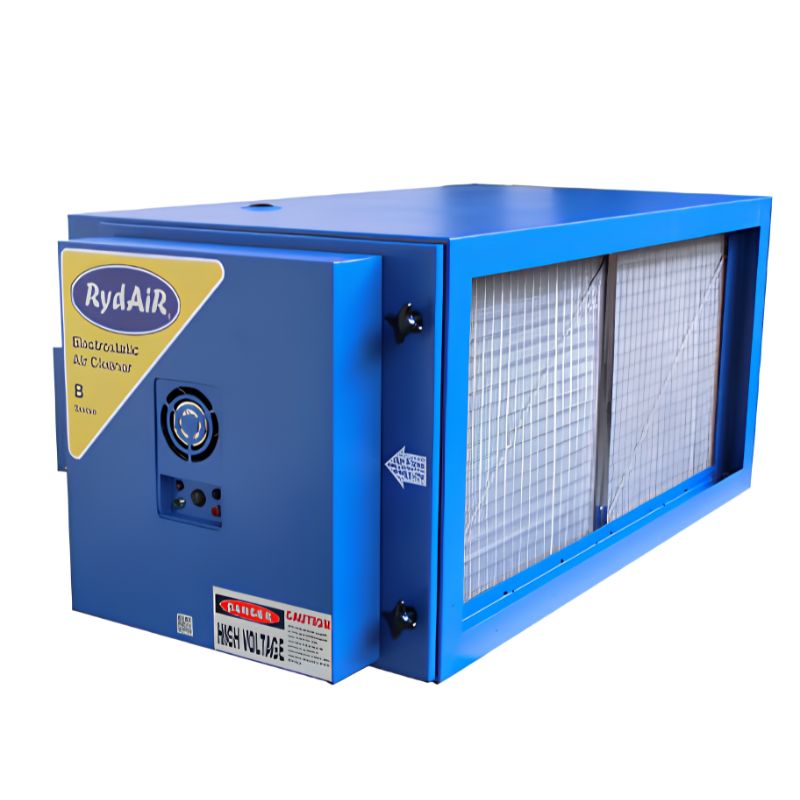

Rydair RY 5000B Electrostatic Air Cleaner – 3000–6100 CFM, 230V, Without Blower

The Rydair RY 5000B Electrostatic Air Cleaner is a high-capacity commercial air filtration unit designed for demanding ventilation and air-cleaning applications. This model is supplied without a blower and uses electrostatic filtration technology with high-frequency solid-state power supply.

With an airflow range of 3,000–6,100 CFM, MERV 15 performance, washable stainless steel wire mesh pre-filters, and two electrostatic cells, the RY 5000B is designed for integration into commercial ventilation and air-cleaning systems.

Key Features

• High-capacity electrostatic air cleaner
• Supplied without blower
• Airflow: 3,000–6,100 CFM
• MERV 15 rating at specified air velocities
• High-voltage ionising system
• High voltage: 12 kVDC
• Low voltage: 6 kVDC
• High-frequency solid-state self-regulating power supply
• Two washable stainless steel wire mesh pre-filters
• Two electrostatic cells
• Total collecting area: 12.14 m²
• Reversible airflow direction
• Ceiling suspended, wall or frame mounted
• Multiple units can be stacked
• Electro-galvanized steel cabinet
• Powder-coated dark blue finish

Technical Specifications

Model: RY 5000B
Product Type: Electrostatic Air Cleaner
Configuration: Without Blower
Cabinet Material: Electro Galvanized Steel
Cabinet Thickness: 1.4 mm / 16 Gauge
Finish: Powder Coated, Dark Blue
Dimensions: H 540 × W 1243 × L 620 mm
Weight: 90 kg
Rated Airflow: 3000–6100 CFM
Rated Airflow: 5000–10450 CMH
Airflow: 1400–2900 L/s
Air Velocity: 2.5–5.08 m/s / 500–1000 fpm
Static Pressure: 0.13"–0.46" / 33–115 Pa
Voltage: 230 VAC ±10%
Frequency: 50/60 Hz
Power Consumption: 75W
High Voltage: 12 kVDC
Low Voltage: 6 kVDC
Power Supply: High-Frequency Solid-State, Self-Regulating
Airflow Direction: Right to Left, Reversible to Left to Right
MERV Rating: MERV 15 at 2.5–3.8 m/s
Pre-Filter: Stainless Steel Wire Mesh, Washable × 2
Electrostatic Cells: 2
Electrostatic Cell Dimensions: H 472 × W 550 × L 340 mm
Cell Weight: 16.5 kg each
Plates per Cell: 59
Total Collecting Area: 12.14 m²
Post Filter: Stainless Steel Wire Mesh, Washable × 2, Optional
Installation: Ceiling Suspended, Wall or Frame Mounted
Stacking: Multiple Units Can Be Stacked
Brand: Rydair
