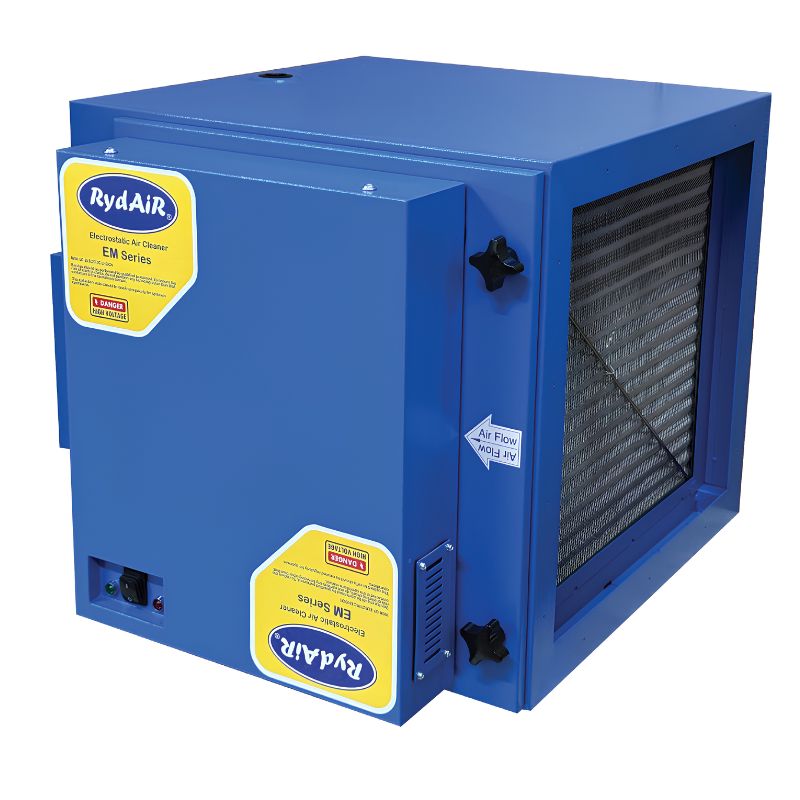

Industrial Grade RY2500EM Electrostatic Air Cleaner – 2000 CFM, 95% Single Pass Efficiency

Model: RY2500EM
Product Type: Industrial Electrostatic Air Cleaner
Brand: Rydair
Airflow Capacity: 1500–2000 CFM / 2500–3500 CMH
Pressure Drop: 0.2" (50 Pa) – 0.46" (115 Pa)
Voltage: 230 VAC ±10%
Frequency: 50/60 Hz
Power Consumption: 48 W
Cabinet Material: Carbon Steel, 18 Gauge
Finish: Powder Coated, Dark Blue
Dimensions (H × L × W): 540 × 579 × 694 mm
Weight: 59 kg
Ionizing Voltage – High: 12–13 kVDC
Ionizing Voltage – Low: 6–7 kVDC
Airflow Direction: Right to Left; Reversible Left to Right
Power Supply: High-Frequency Solid-State PWM, Self-Regulating
Particle Size Range: 0.01–10 microns
DOP Efficiency: Up to 95% Single Pass / 99% Double Pass
ASHRAE 52.2-2012 Efficiency: Up to 96% Single Pass / 99% Double Pass
Number of Electrostatic Cells: 1
Cell Weight: 19.7 kg
Ionizing Wires: 9
Collection Plates: 59
Electrostatic Cell Material: Stainless Steel
Mesh Filter: Stainless Steel Mesh Filter, 1
